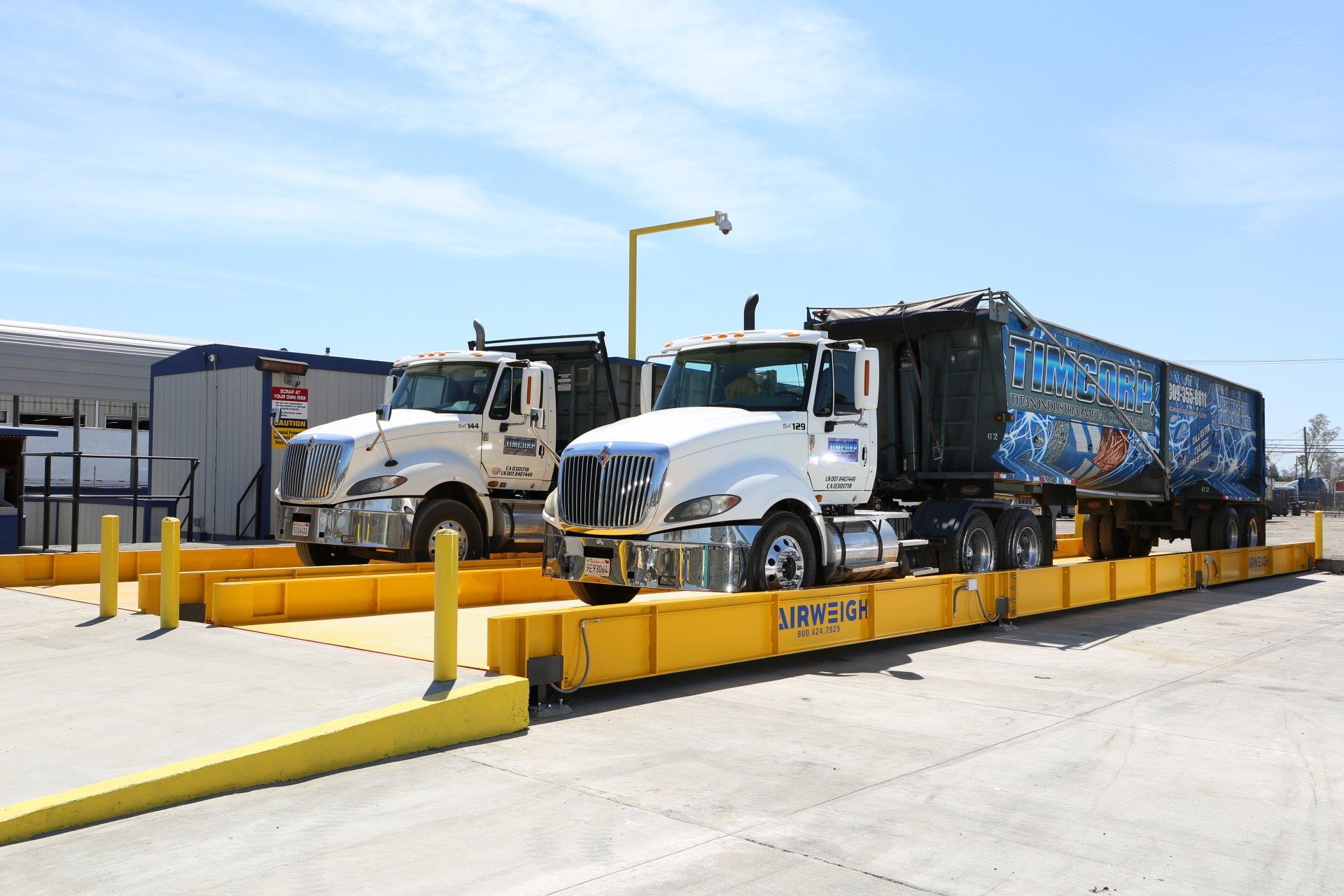

AirWeigh’s RS Series Motor Truck Scales are Built with 24” Main Girder Beams to provide High Load Bearing capacity, Weighbridge rigidity and also act as Guard Rails.

All modules are an Integral Wide-Flange I-Beam Design with no channel incorporated giving the most structural support. The I-Beams are distributed across the width of the platform and oriented longitudinally to the wheel travel of heavy vehicles and includes a thick 3/8” diamond plate decking.

At a 100-Ton overall capacity and a 35-Ton concentrated load rating the RS series is a superior rated motor truck scale.

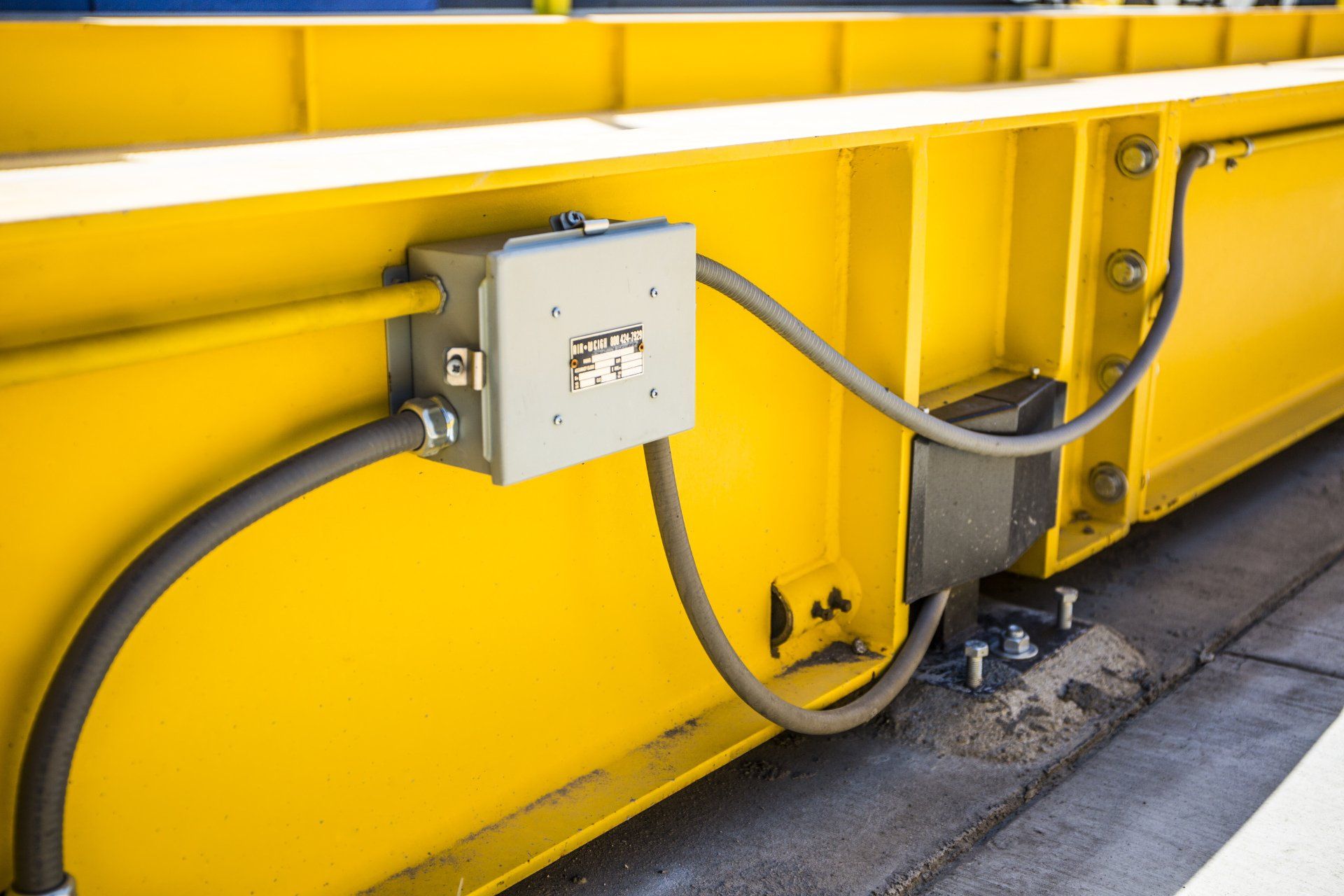

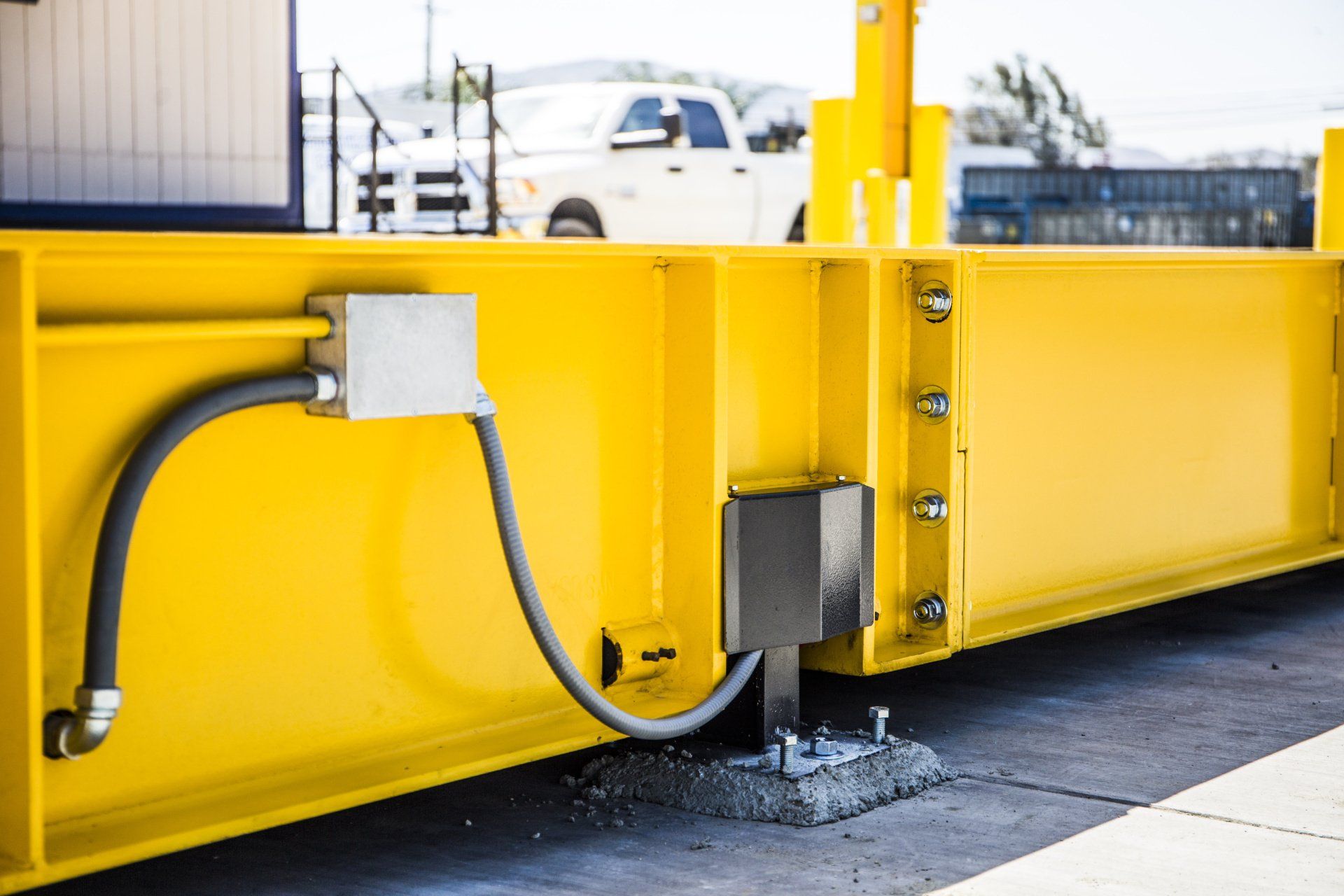

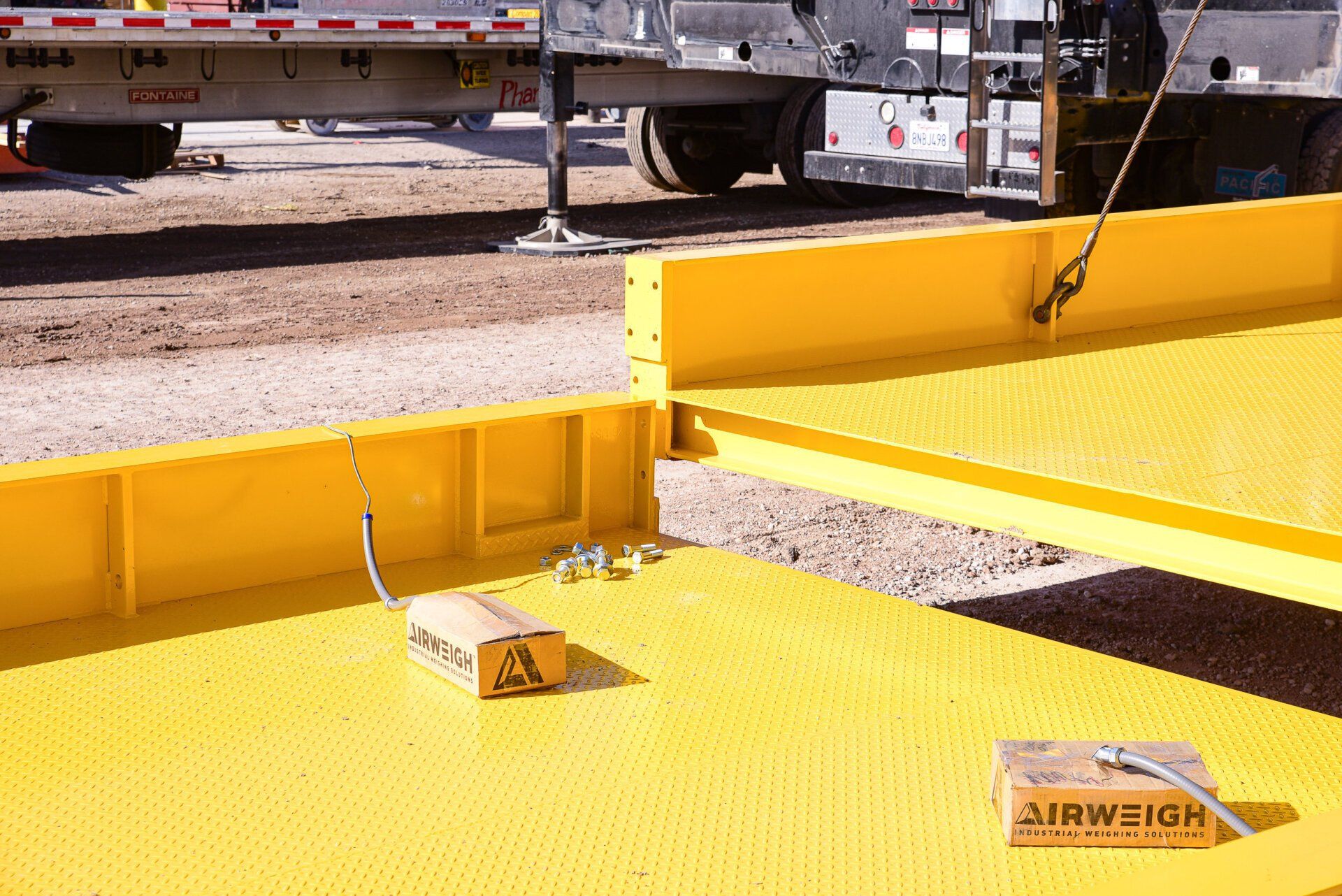

AirWeigh’s load cells are strategically placed on the outside for ease in accessibility for maintenance and link adjustments. AirWeigh’s parallel link suspension incorporates 75K stainless steel load cells that allow the weighbridge to move freely and always find its center. This load sensing system absorbs shock from heavy traffic and promotes return to zero, linearity, and enhances overall accuracy.

STANDARD

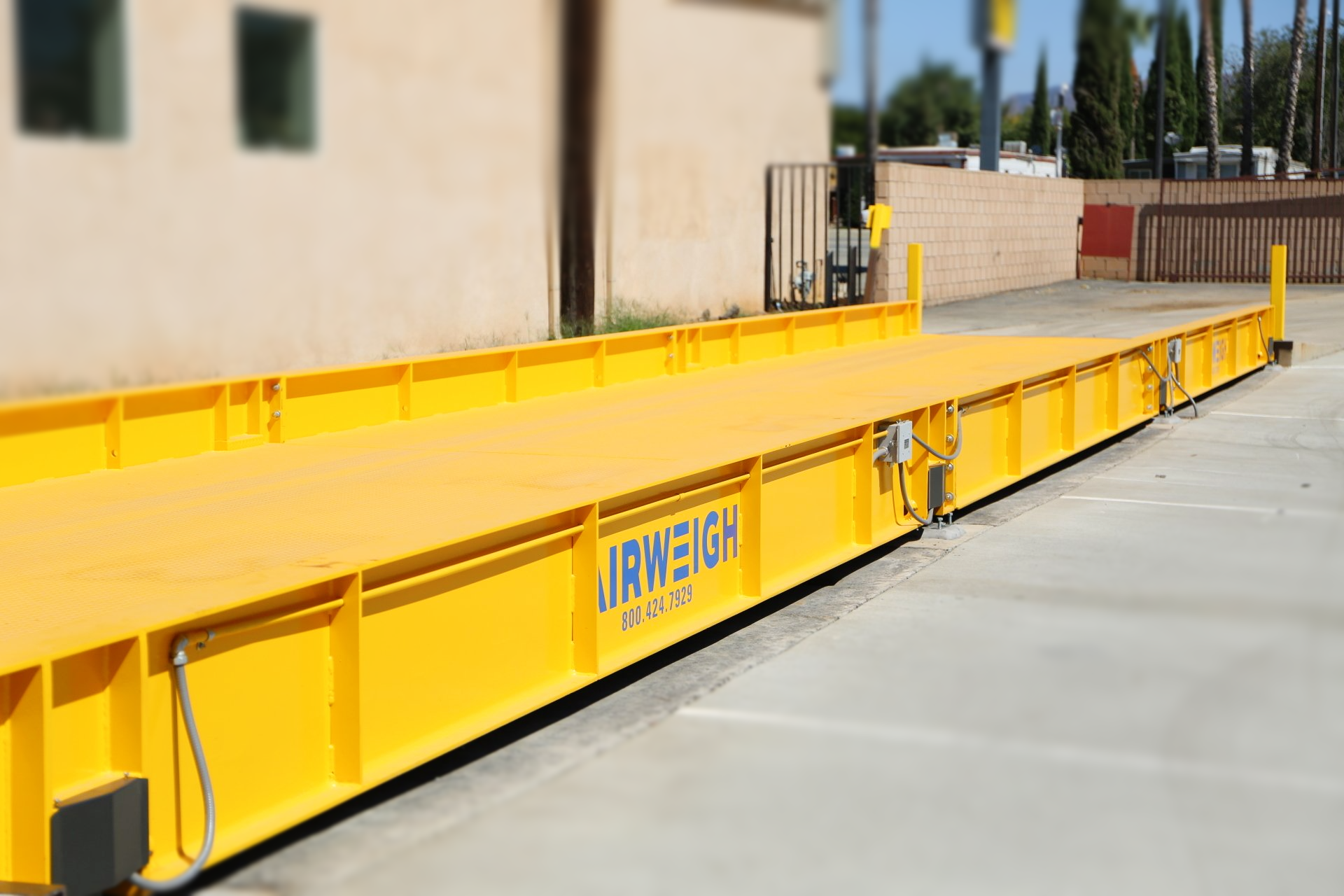

AirWeigh’s RS Series High Rail Truck Scale features a rugged steel structure constructed for either steel or concrete platforms.

The steel deck option guarantees less freight, ease on installation, and the scale comes ready and completed for immediate use. Highly accurate weighing and scale repeatability are a result of the large 25" steel I-beam construction that keeps scale deflection to a minimum.

OPTIONAL

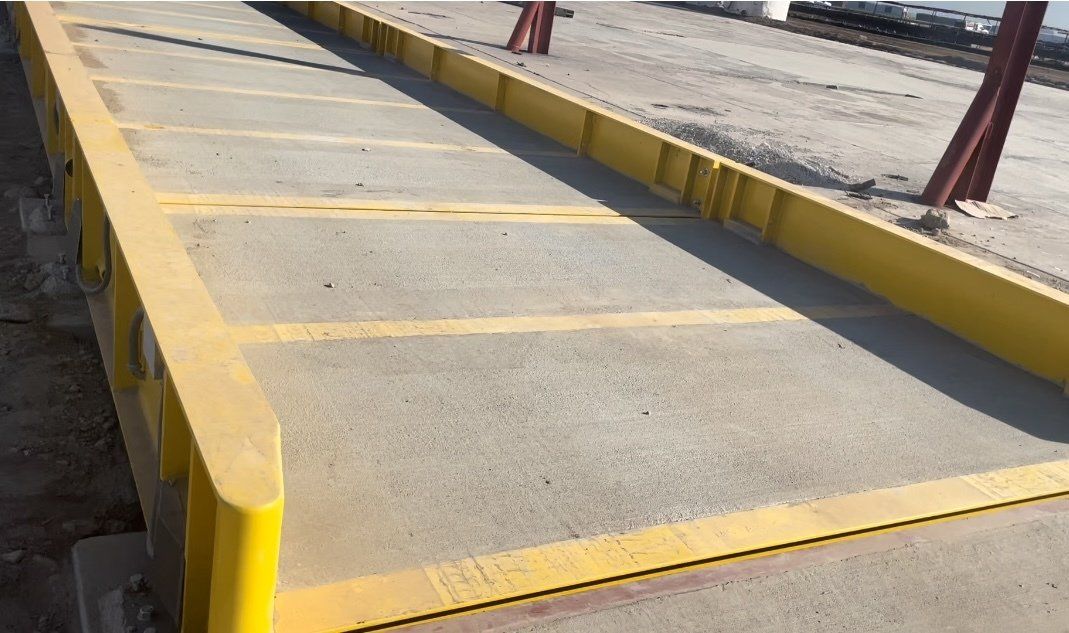

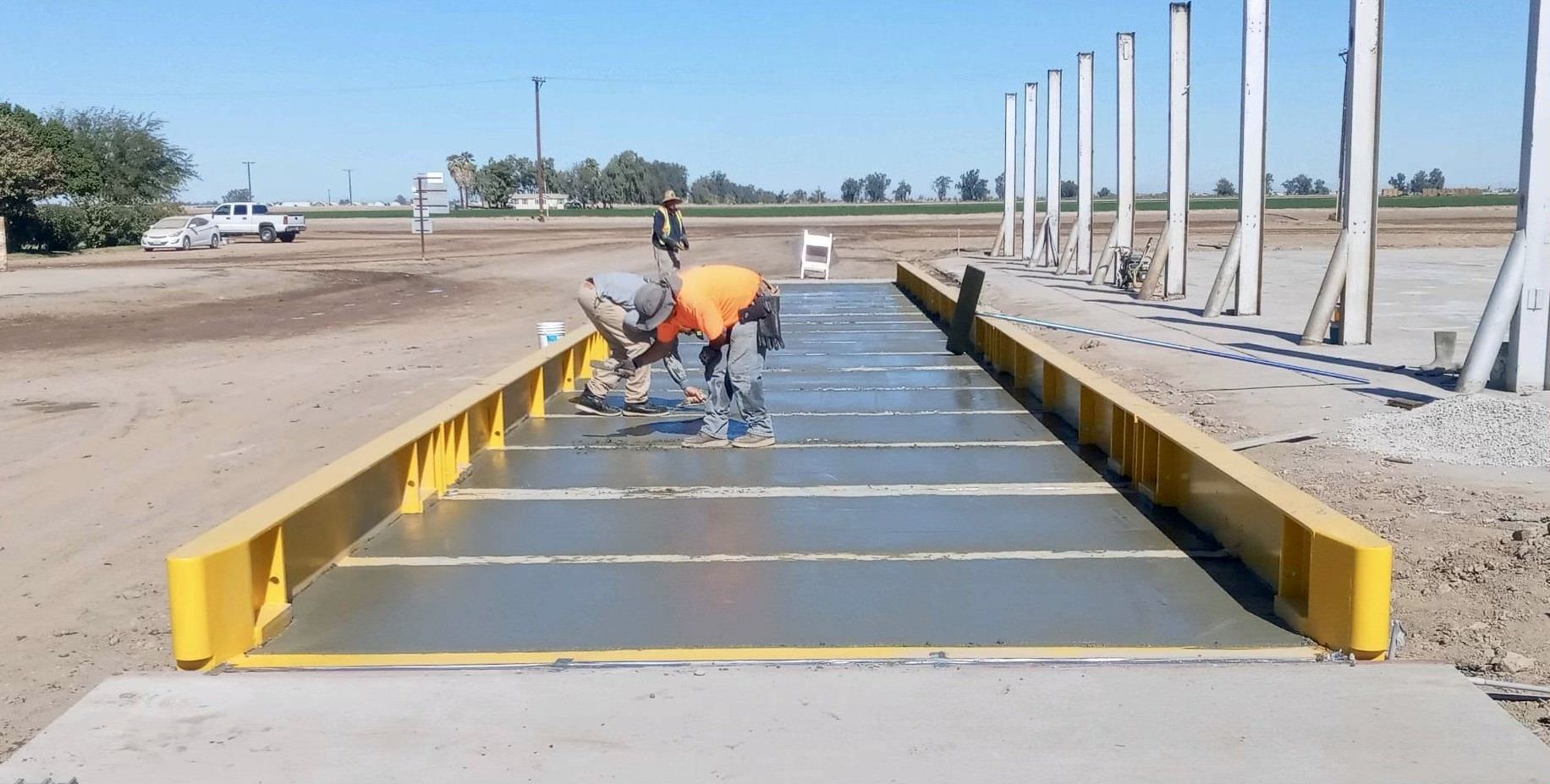

AirWeigh’s RS Series- High Rail Truck Scales concrete platforms feature a superior steel structure. Concrete deck option comes prepared with the deck sheeting pan and rebar already in place for immediate concrete pouring upon installation. This is included in the truck scale sale and the detail print provided to the customer.

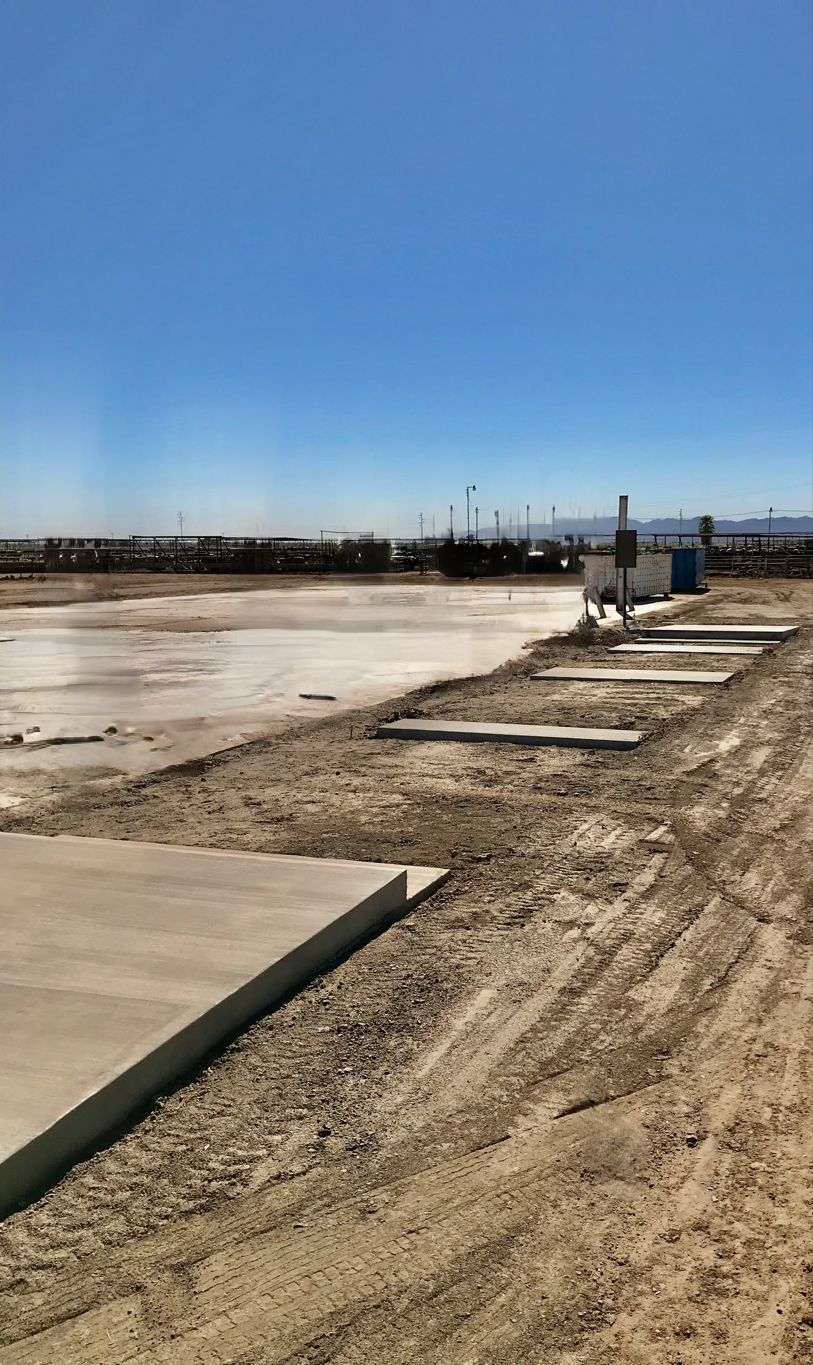

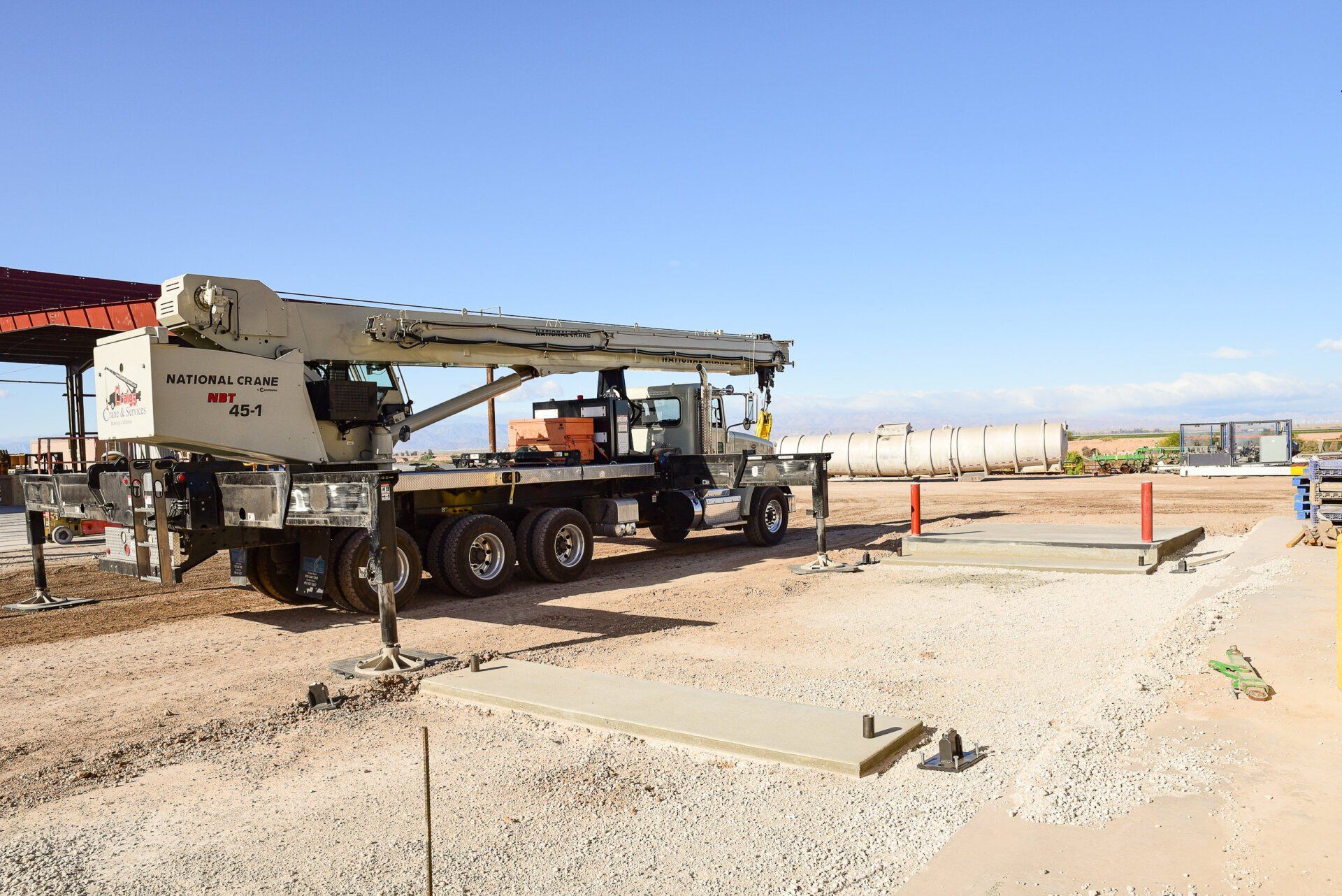

AirWeigh’s RS Series foundation requirements are the most minimal in the industry. The foundation to support the RS Series truck scale requires only four footings, two end walls and approach and exit ramps (the simplest concrete detail plan, saving the end user on costs for expense and time).

AirWeigh provides a foundation detail plan for every device sold. They can be constructed or modified to adhere to any county or city ordinance requirements for approval. The RS Series High Rail Truck Scale is at 9-1/2" low-profile height, making it the lowest profile scale system at 100-ton capacity.

AirWeigh’s RS Series High Rail is the only motor truck scale of its kind available, offering the lowest profile in the industry at 9 ½" height. It is designed, fabricated, and manufactured in the USA by AirWeigh, proudly the last truck scale manufacturer left in California.

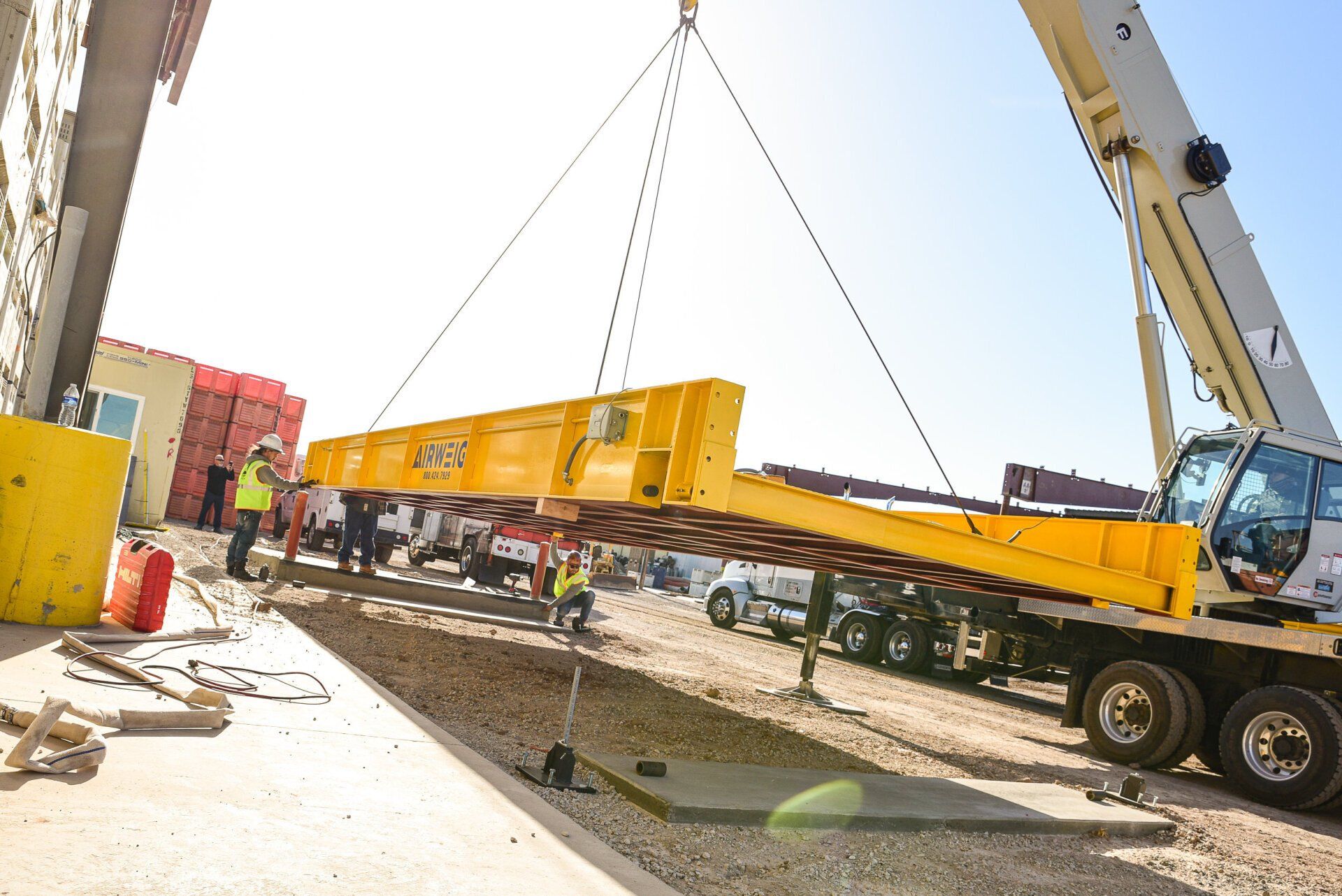

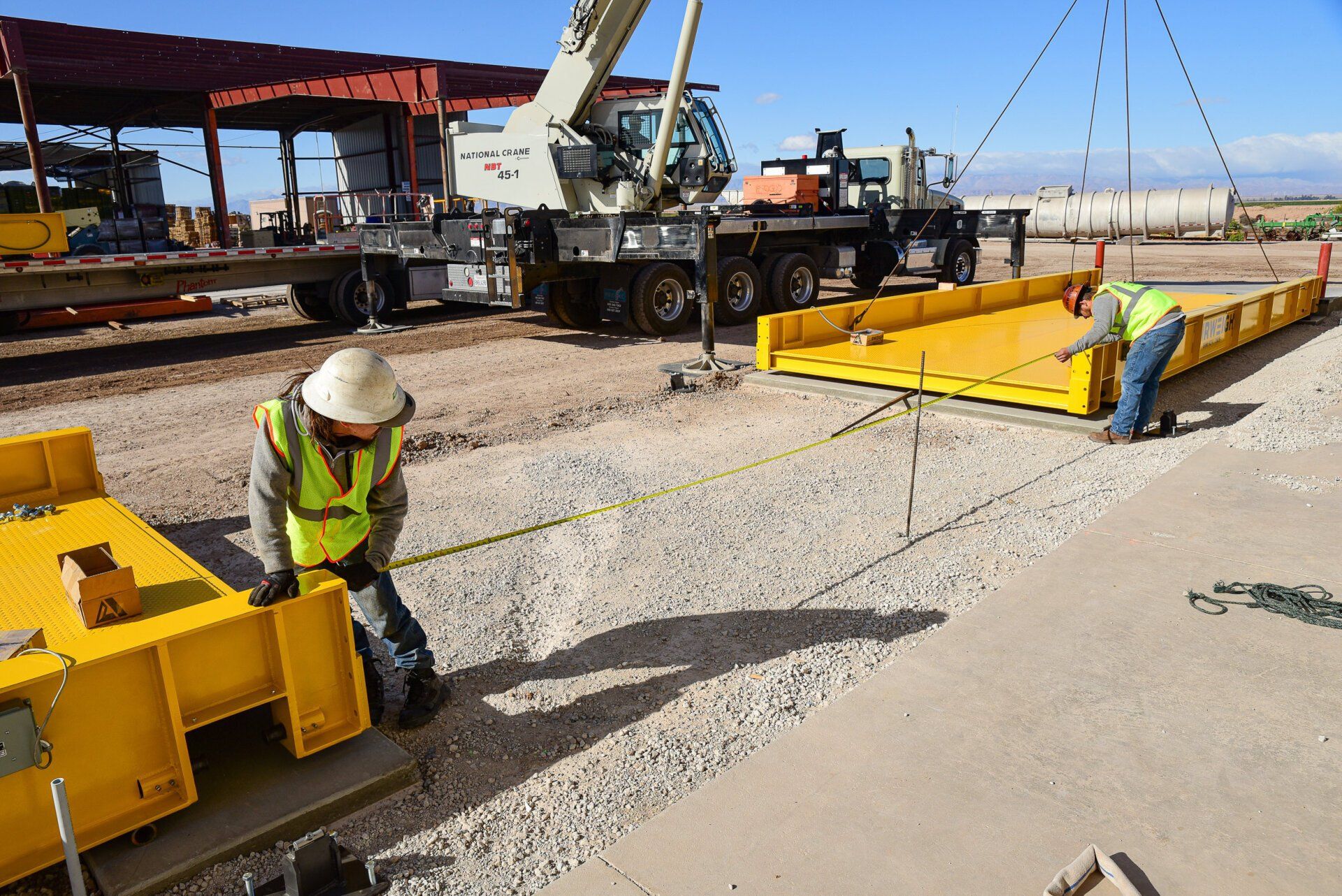

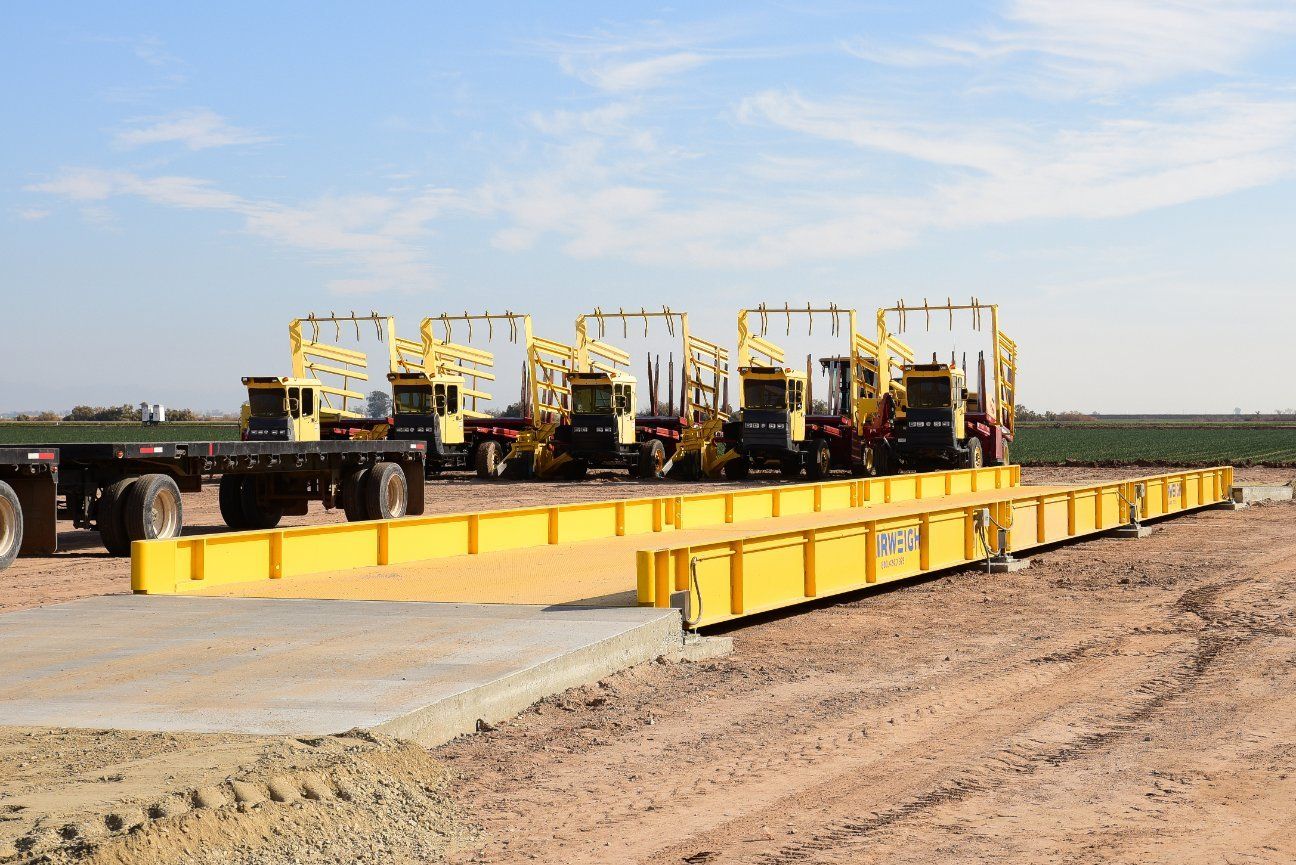

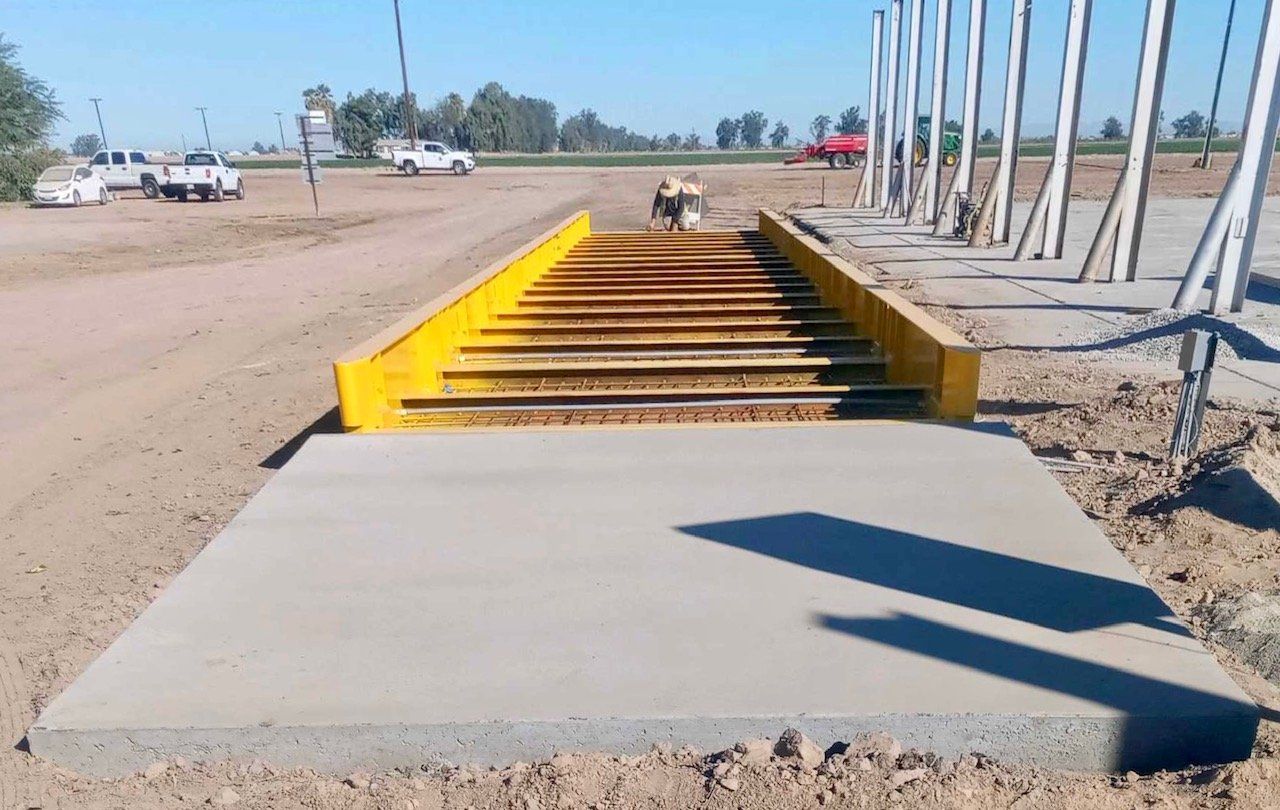

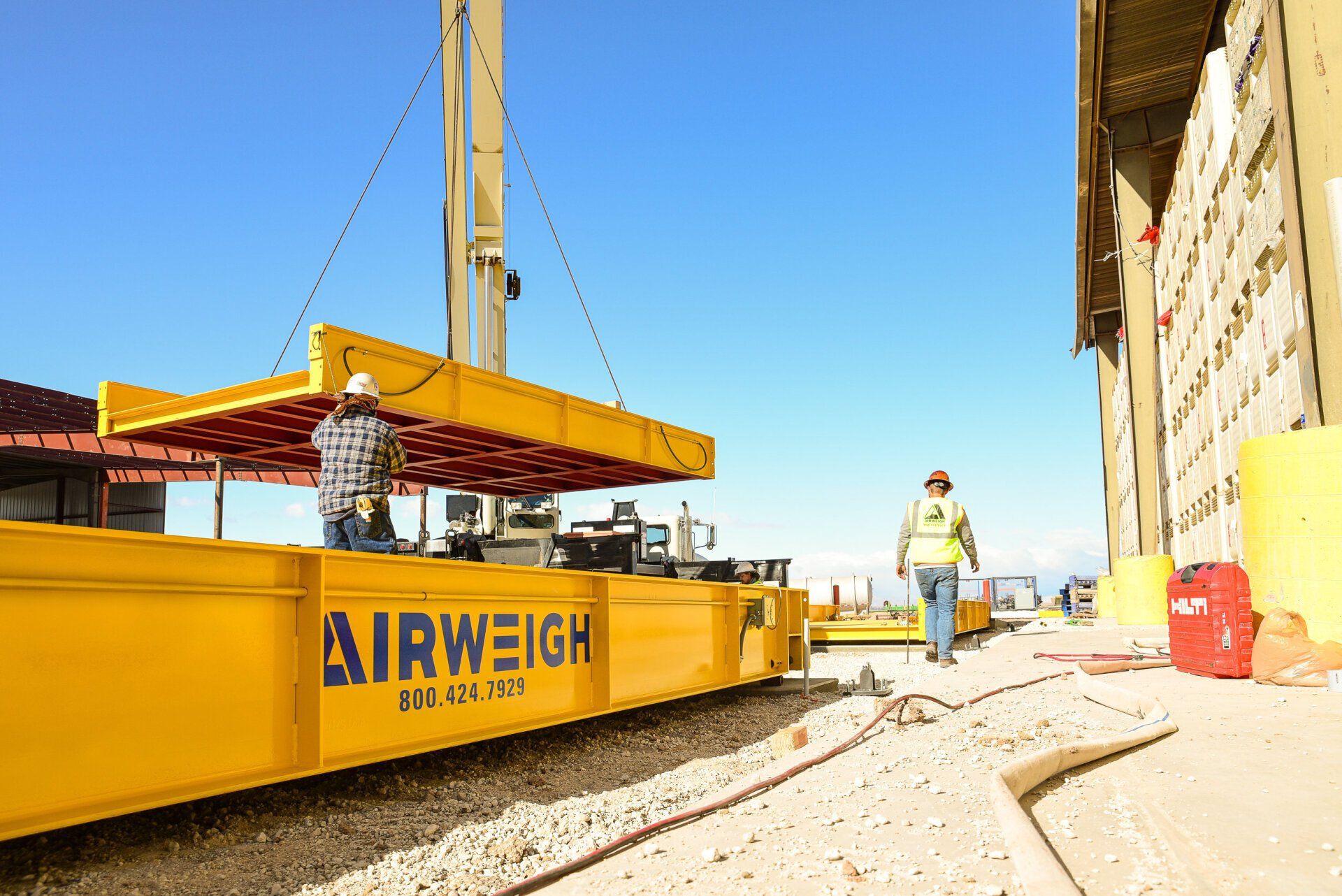

The standard AirWeigh RS High Rail truck scale modules are shipped ready to be placed into position on level footings, using a crane. There are three sections of the truck scale that are mounted to concrete footings with concrete ramps in place at the approach and exit. Final leveling and anchoring of the load stands in place after installation prevents costly contractors’ re-positioning mistakes and gives full discretion to the installer in real time. Interface the truck scale to an instrument, then calibrate/adjust the system.

AirWeigh’s RS Series High Rail is the best in its class commercial weighing device that offers cost-saving advantages and the greatest possible return on investment. The latest DIY Installation video manual available is provided to all end users who purchase AirWeigh.

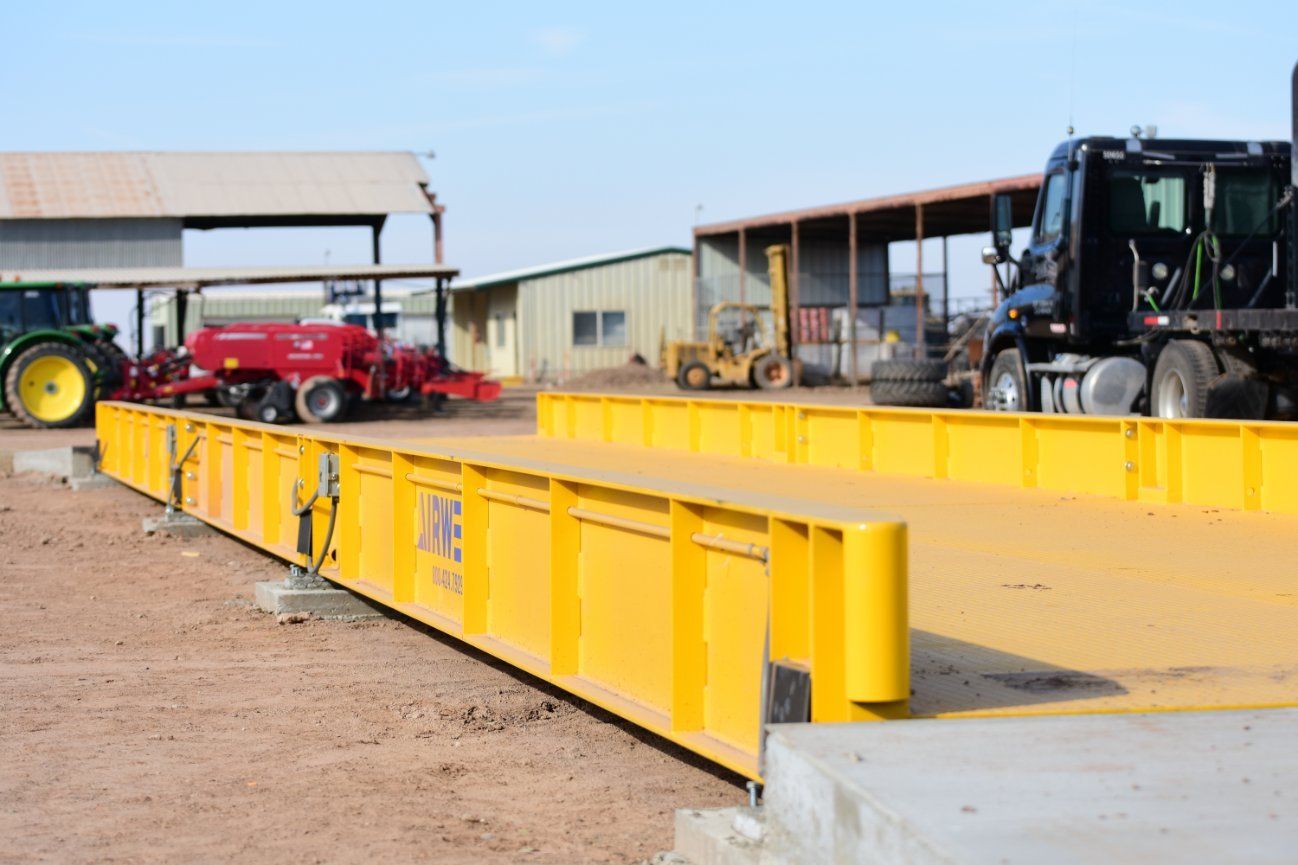

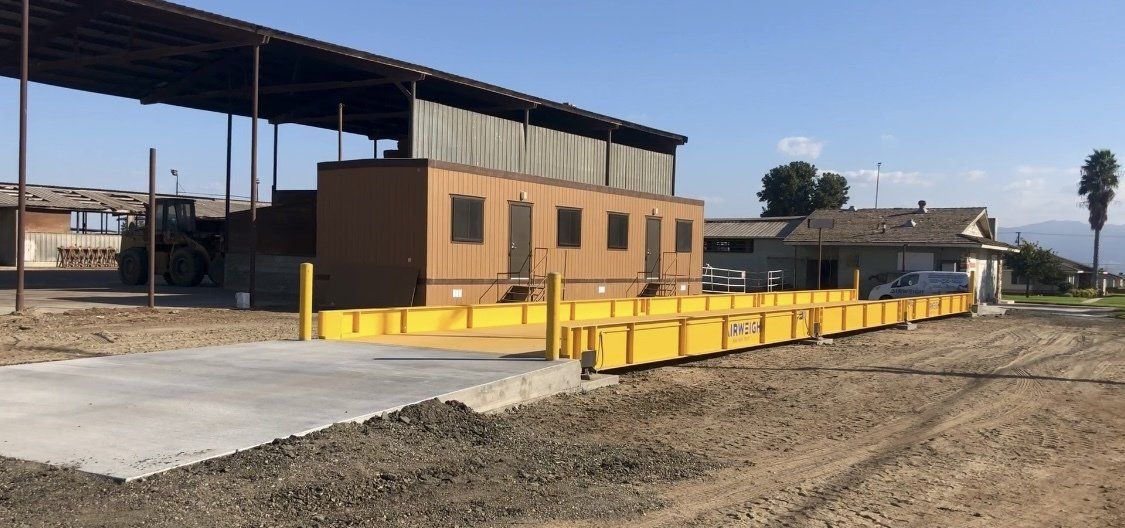

AirWeigh Model RS Low Profile Truck Scale is designed for above ground installations. This eliminates the need for costly pit construction and the maintenance problems inherent with pit type scales.

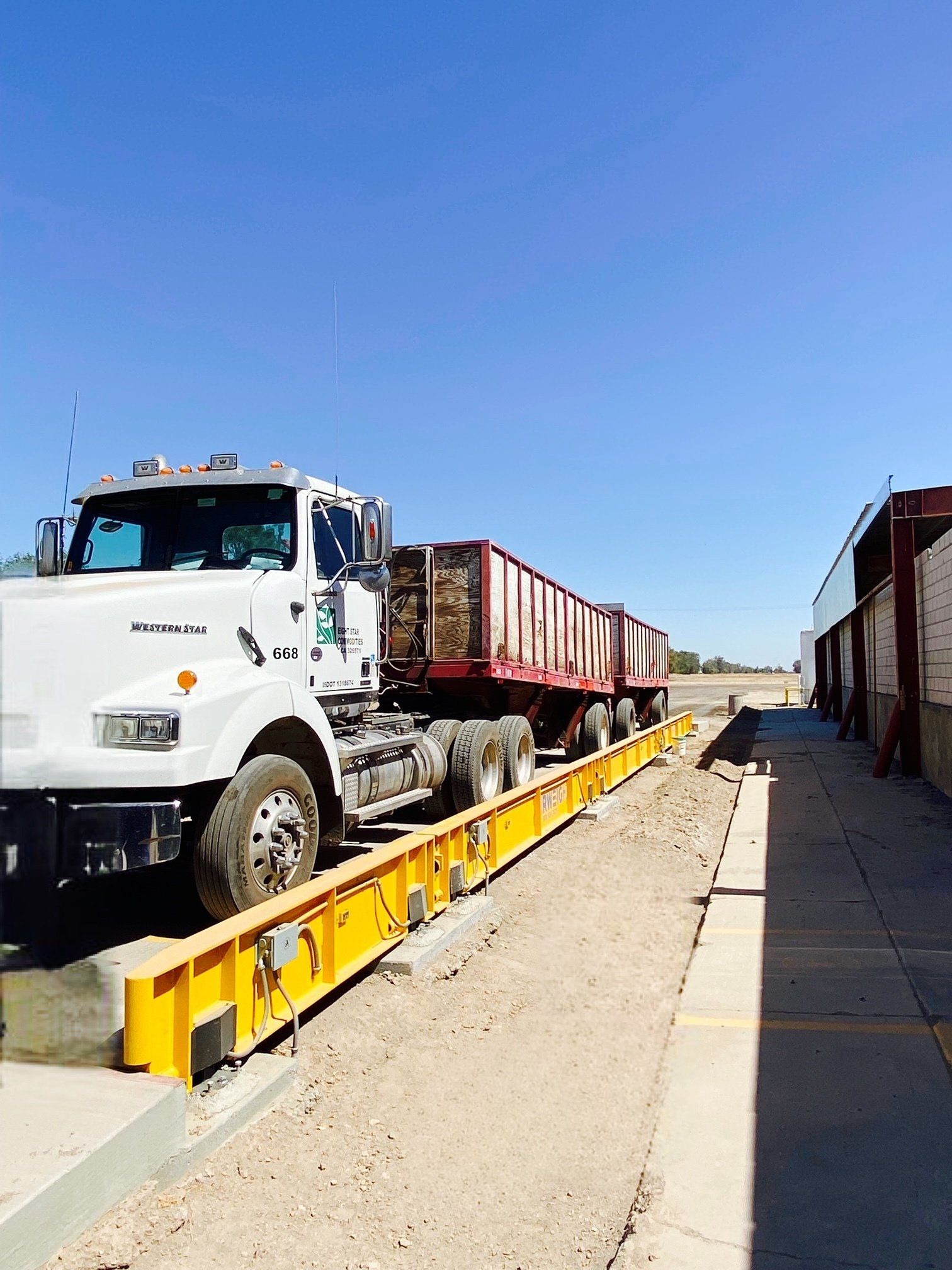

The low profile design of the scale platform allows the truck to drive onto the scale smoothly and easily. The self-compensating double link suspension ensures that the free-floating weighbridge will maintain its neutral position during loading and unloading. This eliminates binding or constrictions. Trucks require only moments on the scale to obtain speedy, precise weighments. The compensated load cells and digital indicator give quick, stable and accurate weight displays.

It is incredible how choosing the right scale system can drastically improve a company's bottom line. AirWeigh truck scales are built with more structural steel, a superior support structure with the highest precision and quality that provides consistent accuracy- ensuring an investment in AirWeigh will yield its best possible return.

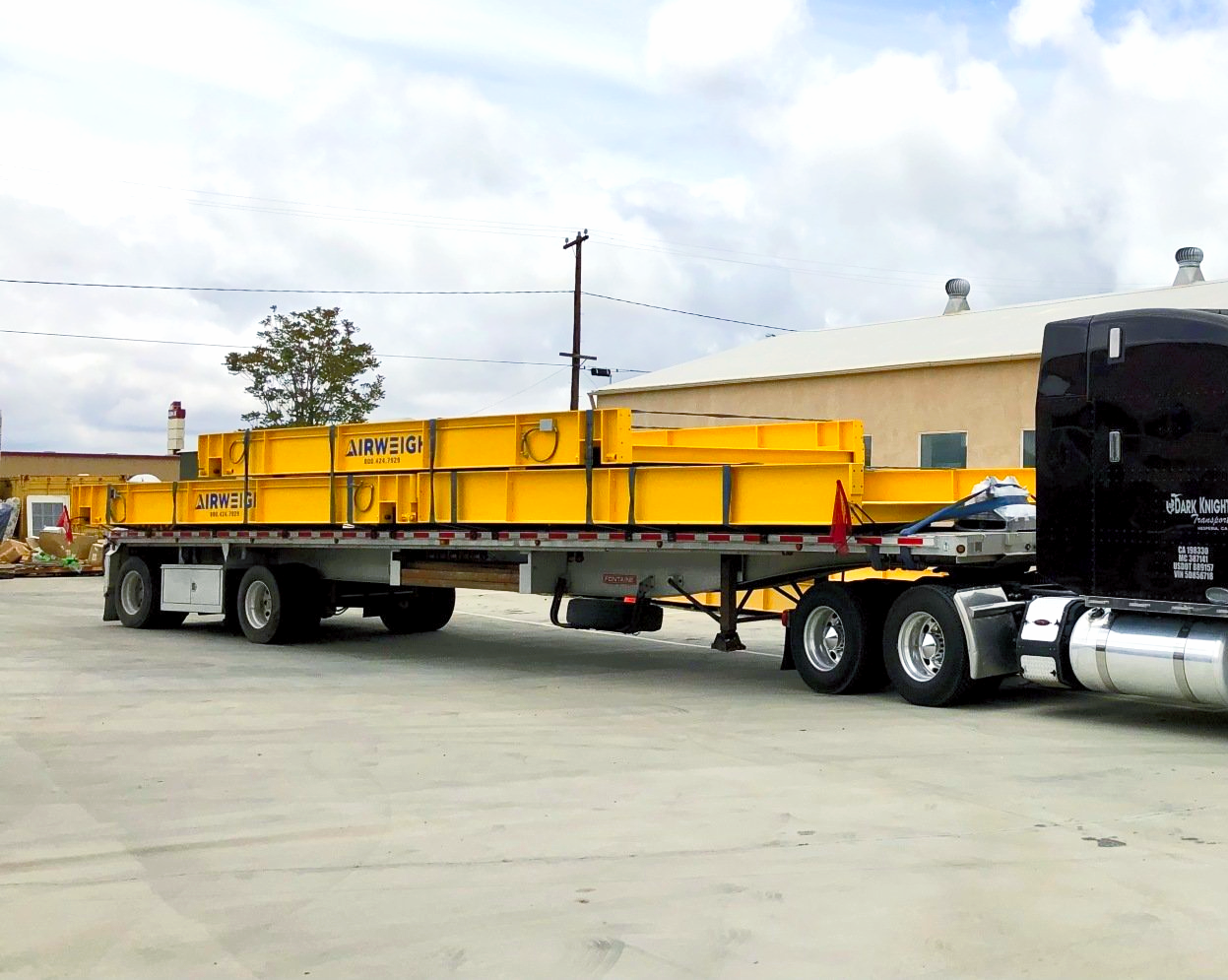

When purchasing an AirWeigh RS Series High Rail Truck Scale you can expect the factory to have loaded it on a single flatbed for a standard size scale. This automatically saves on freight costs as your scale arrives ready for offloading and immediate installation, eliminating multiple picks of the weighbridges.

We offer freight rates and will assist in shipping nationally by third-party vendors and will have taken every precaution to ensure your new AirWeigh truck scale arrives safely.

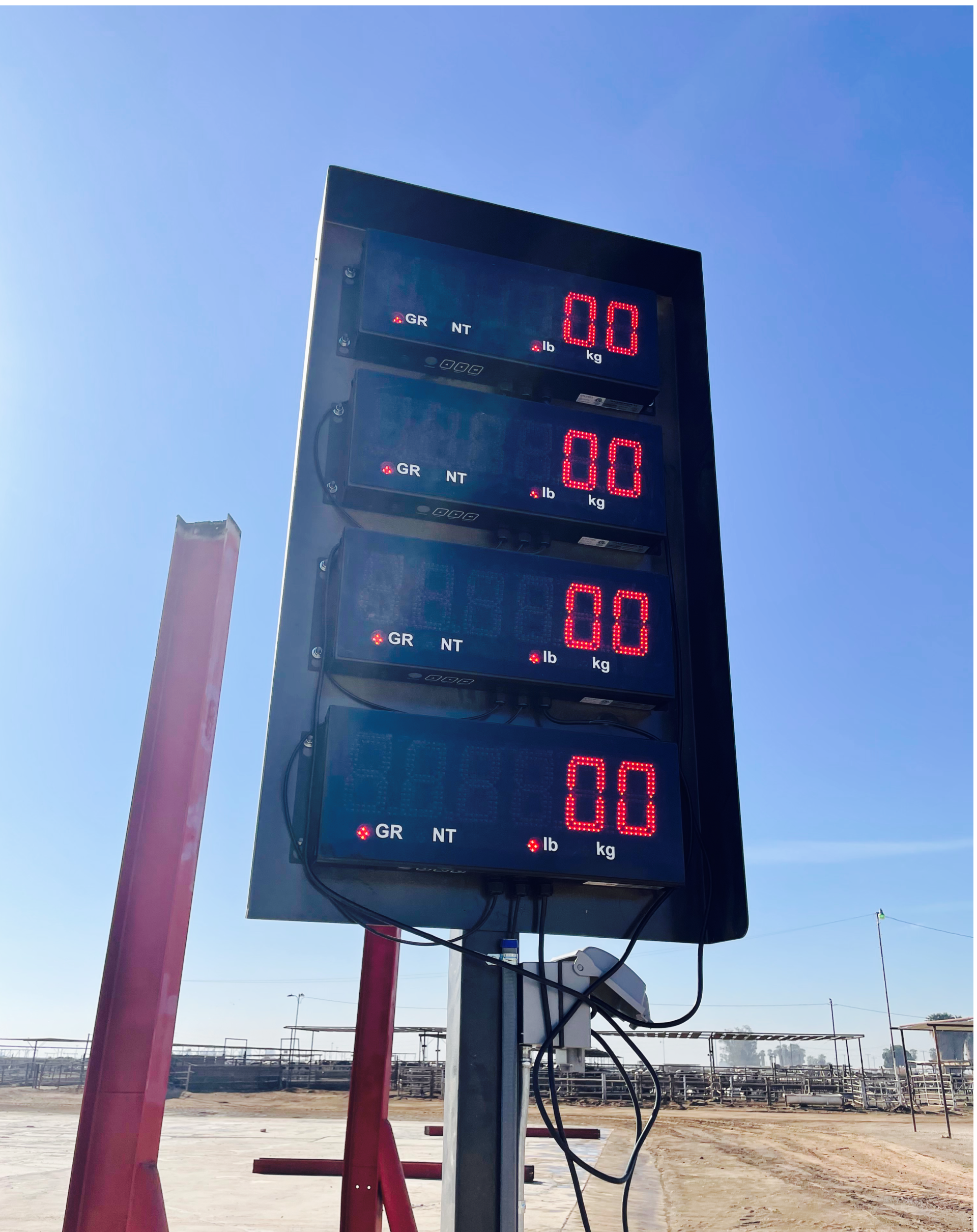

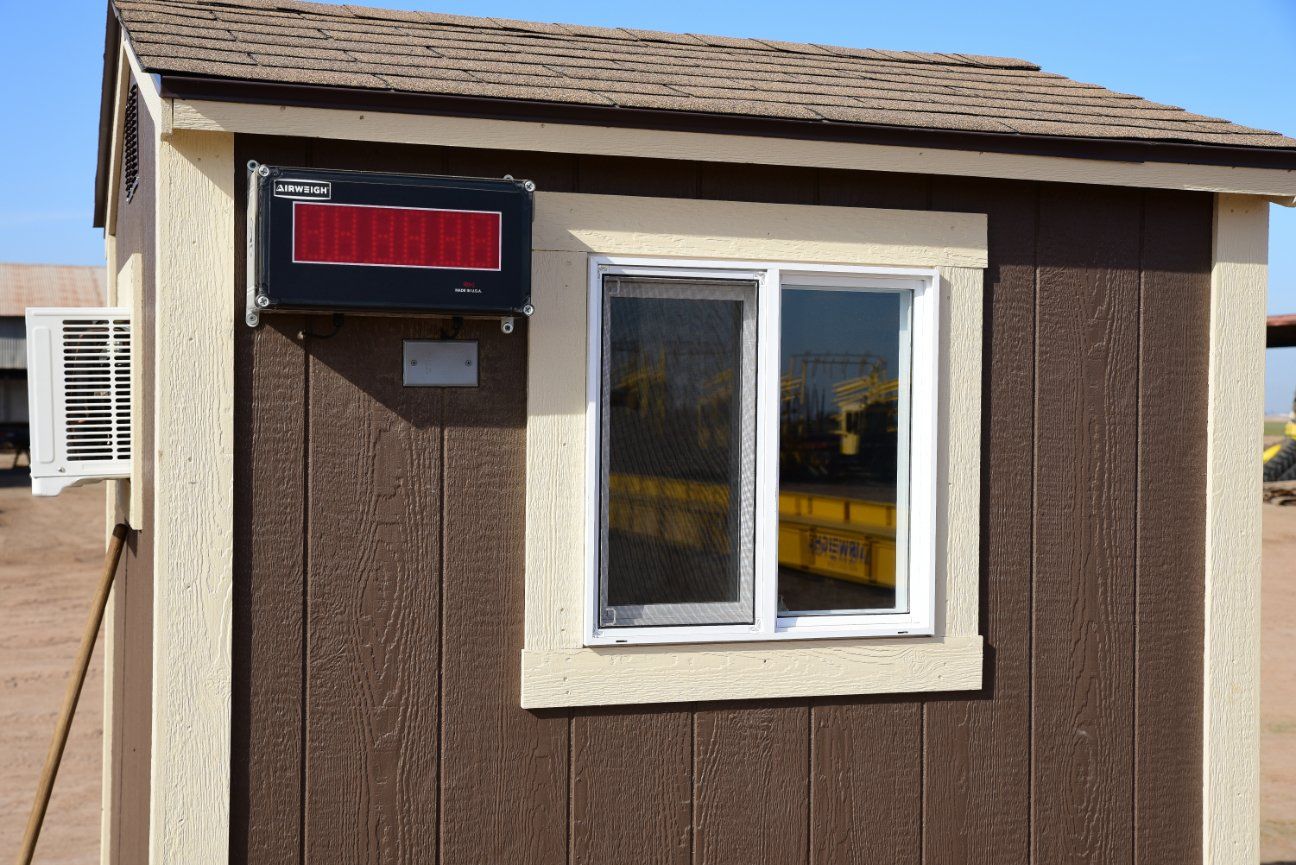

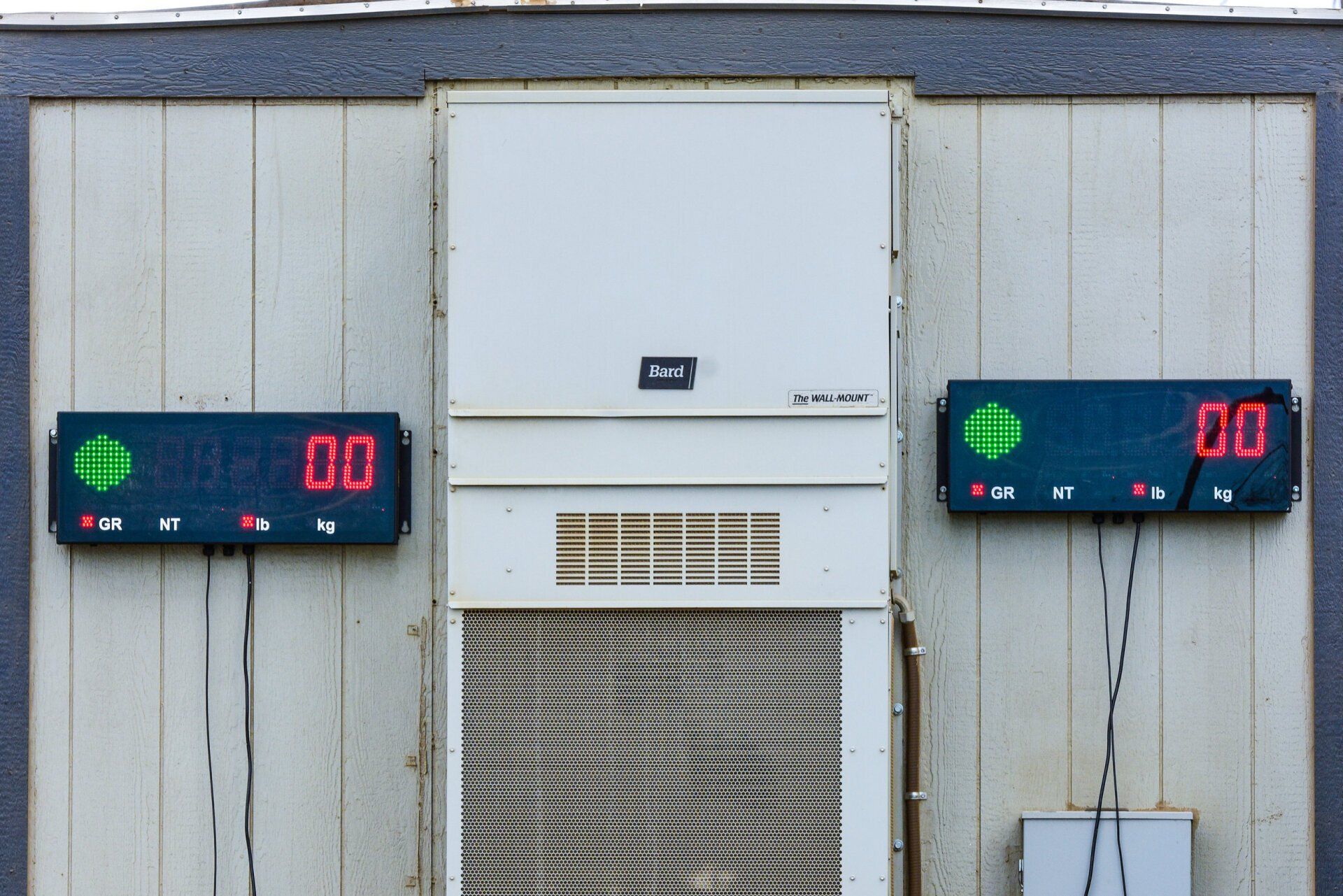

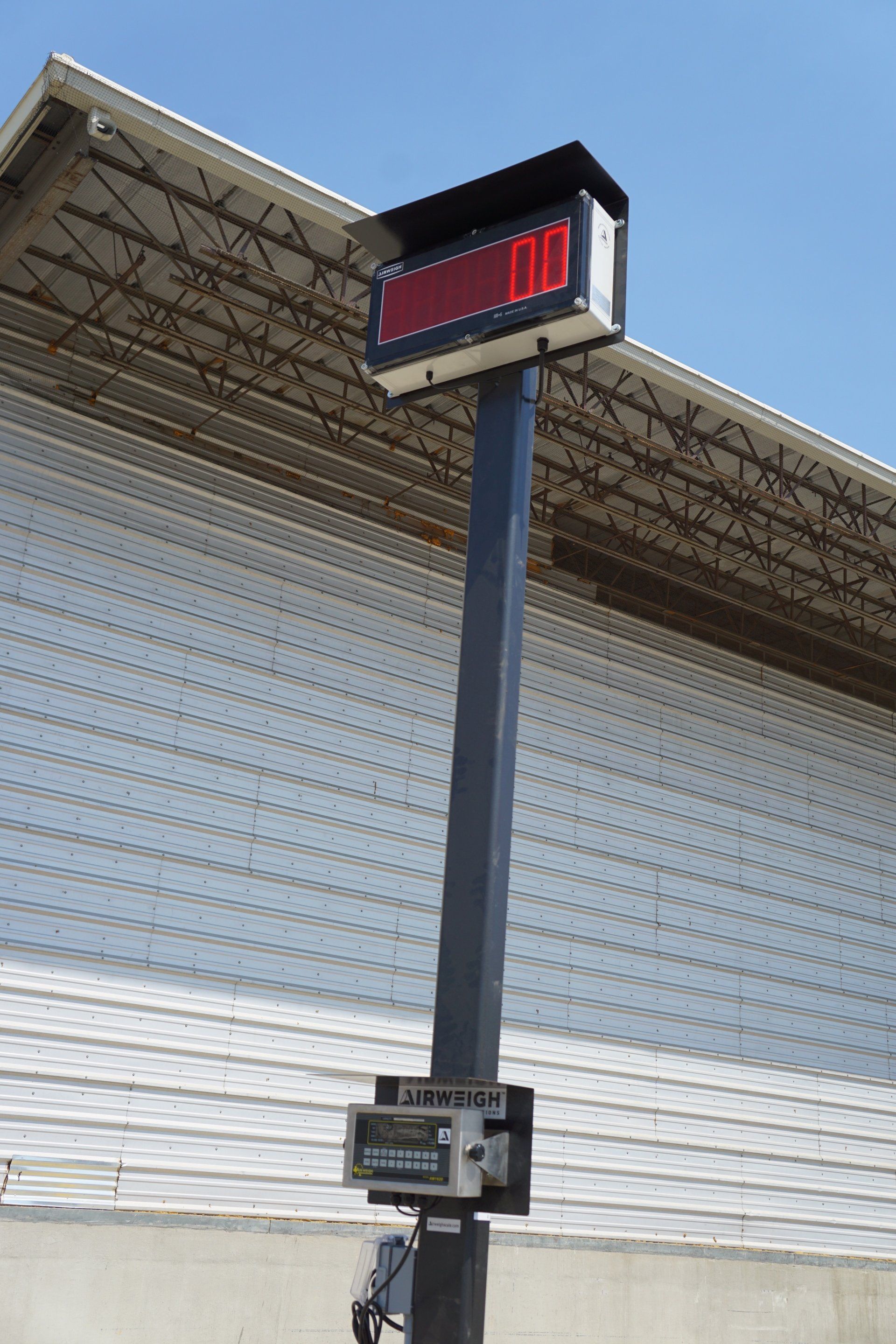

AirWeigh’s Aurora 45SL Scoreboard features a built-in red/green traffic light, which is controlled either with a manual switch or through the scale indicator; improving operations on the scale. Large, bright LED display quickly and accurately communicates scale weight information.

The Aurora 45SL has many communication and diagnostic features, including auto-learn technology, and multiple pre-installed utility programs. Aurora 45SL Scoreboards are extremely flexible for use in any industrial environment.

AirWeigh’s Automated Kiosk System features contactless operations, boosts efficiency, and optimizes the flow of traffic in and out of your facility with fully automated or semi-unattended ticketing.

With ticketing kiosks, drivers can check-in, weigh-in and -out, and print tickets without exiting the truck. These kiosks can integrate with the central office and accounting systems. The user-friendly interface is housed in a rugged stainless steel enclosure for durability.

Automated kiosks are ideal for a variety of applications, including ports, transfer stations, landfills, warehouses, feed mills, grain terminals, chemical plants, construction sites and more.
